Spring Security 3.1 and JSF 2.0 Custom Form

Posted on Updated on

In the previous post we saw how to integrate Spring Security 3.1 and JSF 2.0.

To access the secure page Spring Security Provided us with a default login page.

In this post we will see how can we have a custom login page and use Spring Security for authentication.

First under pages folder create a new folder and name it common. Create a new xhtml under common folder and name it login.xhtml.

login.xhtml

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
  "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:h="http://java.sun.com/jsf/html"
	xmlns:f="http://java.sun.com/jsf/core"
	xmlns:ui="http://java.sun.com/jsf/facelets">
<h:head>
</h:head>
<h:body>
	<div align="right" style="">
		<h:form	id="loginFormId" prependId="false">
				<div id="loginFieldsPnlId">
					<div id="loginFieldUsrContId">
						<h:outputText id="outTxtUserNameId" value="Username:" name="outTxtUserNameNm"></h:outputText>
						<h:inputText id="userName" required="true" value="#{loginMgmtBean.userName}" requiredMessage="Please enter username"></h:inputText>
						<h:outputLabel id="outLblUserNameId" for="userName" name="outLblUserNameNm"></h:outputLabel>
					</div>
					<div id="loginFieldPassContId">
						<h:outputText id="outTxtPasswordId" value="Password:" name="outTxtPasswordNm"></h:outputText>
						<h:inputSecret id="password"  required="true" value="#{loginMgmtBean.password}" requiredMessage="Please enter password" name="inTxtPasswordNm"></h:inputSecret>
						<h:outputLabel id="outLblPasswordId" for="password" name="outLblPasswordNm"></h:outputLabel>
					</div>
				</div>
				<div id="loginBtnPanelId">
					<h:commandButton id="btnLoginId" value="Login" action="#{loginMgmtBean.login}" styleClass="loginPanelBtn"></h:commandButton>
					<h:commandButton id="btnCancelId" value="Cancel" action="#{loginMgmtBean.cancel}" styleClass="loginPanelBtn" immediate="true" update="loginFormId"></h:commandButton>
				</div>
		</h:form>
	</div>
	<div>
		<h:messages></h:messages>
	</div>
</h:body>
</html>

Second lets write our LoginBean.

LoginBean


package com.mumz.jsfspringsec.beans;

import javax.faces.bean.ManagedBean;
import javax.faces.bean.ManagedProperty;
import javax.faces.bean.RequestScoped;

import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.context.SecurityContextHolder;

/**
 * The Class LoginBean.
 */
@ManagedBean(name="loginMgmtBean")
@RequestScoped
public class LoginBean {

	/** The user name. */
	private String userName = null;

	/** The password. */
	private String password = null;

	@ManagedProperty(value="#{authenticationManager}")
	private AuthenticationManager authenticationManager = null;
	/**
	 * Login.
	 *
	 * @return the string
	 */
	public String login() {
		try {
			Authentication request = new UsernamePasswordAuthenticationToken(this.getUserName(), this.getPassword());
			Authentication result = authenticationManager.authenticate(request);
			SecurityContextHolder.getContext().setAuthentication(result);
		} catch (AuthenticationException e) {
			e.printStackTrace();
		}
		return "secured";
	}

	/**
	 * Cancel.
	 *
	 * @return the string
	 */
	public String cancel() {
		return null;
	}

	public AuthenticationManager getAuthenticationManager() {
		return authenticationManager;
	}

	public void setAuthenticationManager(AuthenticationManager authenticationManager) {
		this.authenticationManager = authenticationManager;
	}

	/**
	 * Gets the user name.
	 *
	 * @return the user name
	 */
	public String getUserName() {
		return userName;
	}

	/**
	 * Sets the user name.
	 *
	 * @param userName
	 *            the new user name
	 */
	public void setUserName(String userName) {
		this.userName = userName;
	}

	/**
	 * Gets the password.
	 *
	 * @return the password
	 */
	public String getPassword() {
		return password;
	}

	/**
	 * Sets the password.
	 *
	 * @param password
	 *            the new password
	 */
	public void setPassword(String password) {
		this.password = password;
	}
}

Third we have to configure our bean in spring bean definition, since we are not using annotation based injection.

jsfspring-sec-bean-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:sec="http://www.springframework.org/schema/security"
	xsi:schemaLocation="
	   http://www.springframework.org/schema/beans
	   http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
       http://www.springframework.org/schema/security
	   http://www.springframework.org/schema/security/spring-security-3.1.xsd"
	   >

	<beans:bean id="navigator" name="navigator" class="com.mumz.jsfspringsec.beans.Navigator" scope="session">
	</beans:bean>

	<beans:bean id="loginBean" name="loginBean" class="com.mumz.jsfspringsec.beans.LoginBean" scope="prototype">
		<beans:property name="authenticationManager" ref="authenticationManager"></beans:property>
	</beans:bean>

</beans:beans>

Fourth we need to specify our login page to Spring Security, for this we need to change our jsfspring-sec-security-config.xml.

jsfspring-sec-security-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans
	xmlns:sec="http://www.springframework.org/schema/security"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xsi:schemaLocation="
	   http://www.springframework.org/schema/beans
	   http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
	   http://www.springframework.org/schema/security
	   http://www.springframework.org/schema/security/spring-security-3.1.xsd">

	 <sec:http auto-config="true" use-expressions="true">
		<sec:intercept-url pattern="/pages/secure/**" access="hasRole('ROLE_USER')" />
		<sec:intercept-url pattern="/pages/unsecure/**" access="permitAll"/>
		<sec:intercept-url pattern="/**" access="permitAll"/>
		<sec:form-login login-page="/pages/common/login.jsf"/>
	</sec:http>

	<sec:authentication-manager alias="authenticationManager">
		<sec:authentication-provider>
			<sec:user-service>
				<sec:user authorities="ROLE_USER" name="admin" password="admin" />
			</sec:user-service>
		</sec:authentication-provider>
	</sec:authentication-manager>

</beans:beans>

Last portion is that we have to modify our faces-config.xml since we are not depending on implicit navigation.

faces-config.xml

<?xml version="1.0" encoding="UTF-8"?>

<faces-config
    xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-facesconfig_2_0.xsd"
    version="2.0">
    <!-- Enable Spring -->
    <application>
    	<el-resolver>org.springframework.web.jsf.el.SpringBeanFacesELResolver</el-resolver>
    </application>
    <!-- Simple Navigation Rule -->
    <!-- If  user keys in ToSecure, move to /pages/secure/secured.xhtml-->
    <!-- Else If user keys in ToUnSecure, move to /pages/unsecure/unsecured.xhtml-->
    <navigation-rule>
    	<display-name>pages/home/home.xhtml</display-name>
    	<from-view-id>/pages/home/home.xhtml</from-view-id>
    	<navigation-case>
    		<from-action>#{navigator.navigateTo}</from-action>
    		<from-outcome>Secured</from-outcome>
    		<to-view-id>/pages/secure/secured.xhtml</to-view-id>
    		<redirect></redirect>
    	</navigation-case>
    </navigation-rule>
    <navigation-rule>
    	<display-name>pages/home/home.xhtml</display-name>
    	<from-view-id>/pages/home/home.xhtml</from-view-id>
    	<navigation-case>
    		<from-action>#{navigator.navigateTo}</from-action>
    		<from-outcome>UnSecured</from-outcome>
    		<to-view-id>/pages/unsecure/unsecured.xhtml</to-view-id>
    		<redirect></redirect>
    	</navigation-case>
    </navigation-rule>
    <navigation-rule>
    	<display-name>pages/secure/secured.xhtml</display-name>
    	<from-view-id>/pages/secure/secured.xhtml</from-view-id>
    	<navigation-case>
    		<from-action>#{loginMgmtBean.logout}</from-action>
    		<from-outcome>loggedout</from-outcome>
    		<to-view-id>/pages/home/home.xhtml</to-view-id>
    	</navigation-case>
    </navigation-rule>
    <navigation-rule>
    	<display-name>pages/common/login.xhtml</display-name>
    	<from-view-id>/pages/common/login.xhtml</from-view-id>
    	<navigation-case>
    		<from-action>#{loginMgmtBean.login}</from-action>
    		<from-outcome>Secured</from-outcome>
    		<to-view-id>/pages/secure/secured.xhtml</to-view-id>
    	</navigation-case>
    </navigation-rule>
</faces-config>

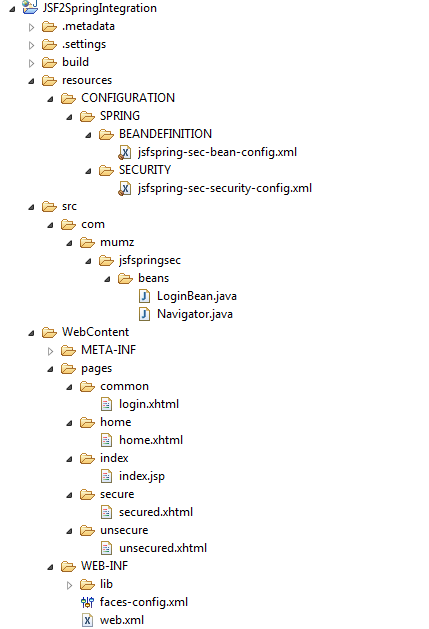

If you have followed every step as detailed in the earlier post and this one your project structure should look like below:


That’s it, deploy and run, we have successfully integrated Spring Security with custom login page using JSF 2.0.
